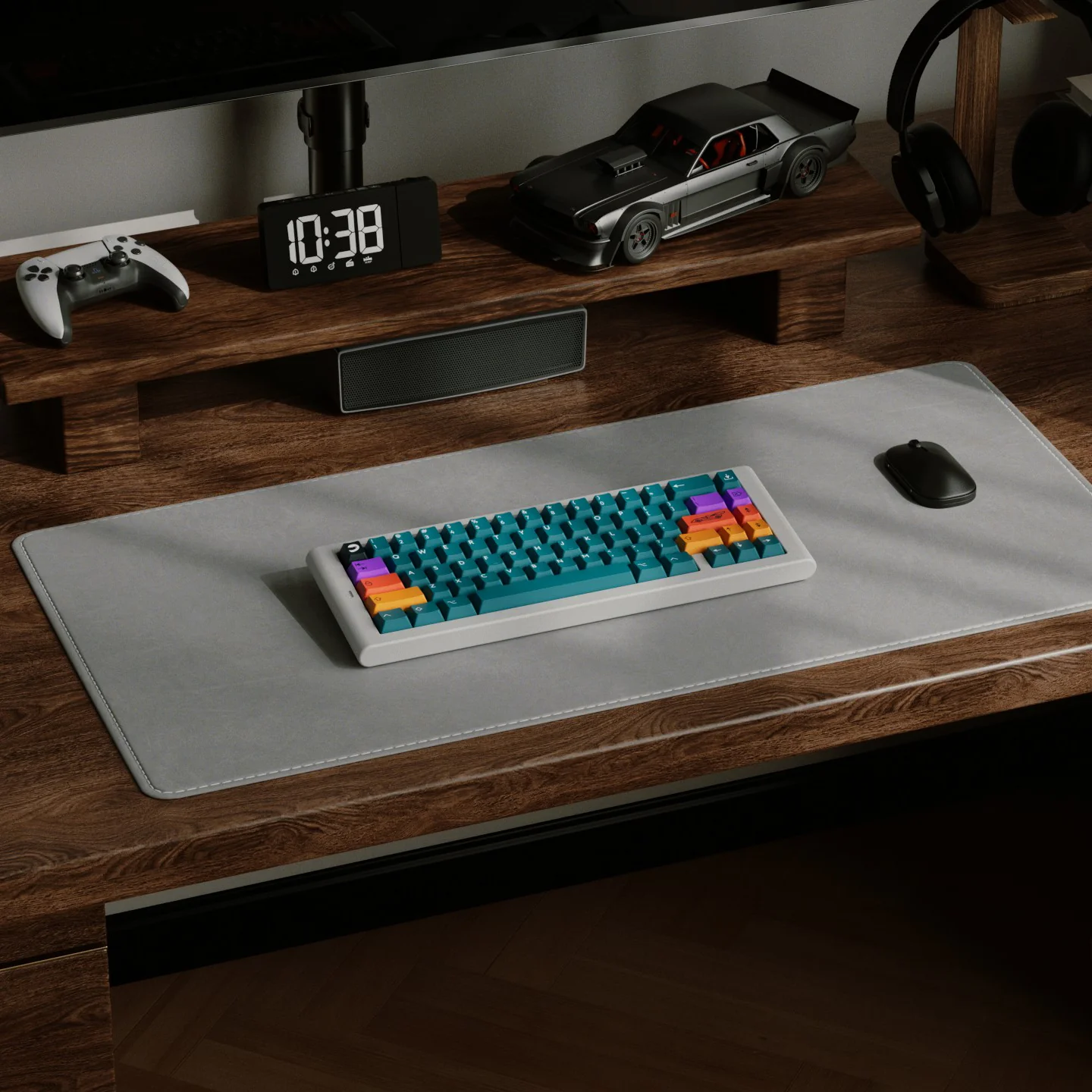

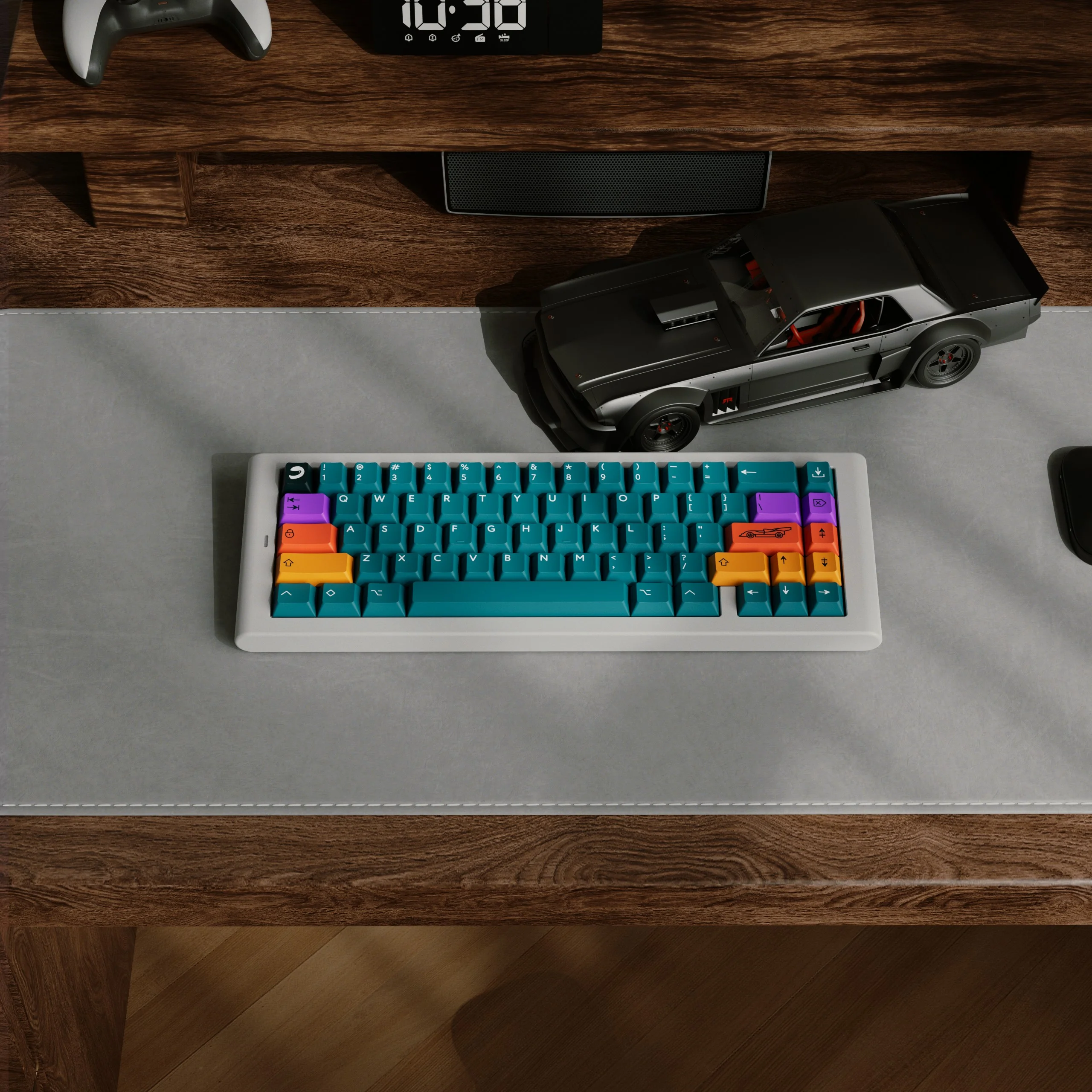

Boop Redux

Introducing boop65 redux, a refined version of its predecessor.
A timeless design with seamless and fully rounded edges, once again but with an even sleeker design,
improved compatibility and a new feature: the external LED indicator.

Specs

Case: Top and bottom aluminum case
Mount style: Silicone socks gasket / Top mount
Weight bar: Stainless steel weight bar + Copper logo badge (manufacturing process: Powder coating + transparent electrophoretic coating)
PCB: 1.6mm Hot-swap wired PCB, with a Caps lock LED indicator, support VIA/QMK, USB-C interface
Plate: Aluminum Black/FR4/Polycarbonate
Price: 239USD/254USD
Designer: biip
Weight: ~2.17kg after assemblyL

Update

In-stock sale: Around May 10th (2024-05-08)
Pre-order time: To be updated
Estimated shipping date: To be updated

Include

Case x1
PCB x1
Daughterboard+ JST cable x1
Weight bar x1
FR4 Plate x1
Aluminum Plate x1
Polycarbonate Plate x1
Foam kit x1 (Switch pad x1, PCB foam x1, Case foam x1)
Screwdriver (with 2 bits) x1
Silicone socks x1 set
Long strip rubber feet x1 set
Screws x1 set

Firmware

Comparison

Version	Boop v1	Boop Redux
Structure	Gasket mount	Silicone socks gasket / Top mount
Case	Without Caps lock LED indicator hole; Gradient exterior	With Caps lock LED indicator hole; Minimalist design
PCB version	Hot-swap / Solder	Hot-swap (with daughterboard) only
Weight bar	Brass weight bar	Stainless steel weight bar + Copper brass logo badge
Plate	Aluminum White / Brass / FR4 / Polycarbonate	Aluminum Black / FR4 / Polycarbonate
Rubber feet	Adhesive rubber feet	Embeddable long strip rubber feet

E-white

Anodized Black

Anodized Silver

Anodized Gray

Anodized Burgundy

Anodized Pine Green

Anodized Light Purple

New Features

Outer side of the badge: Redesigned with a stylish aesthetic

Inner side of the badge: Crafted from copper material for a more exquisite appearance.

Bottom case: The changes in appearance make it better align with the curved aesthetics of the top case, achieving a harmonious and unified overall visual effect.

Top case: The curvature on both sides of the shell has been optimized for a more natural transition with the front; practical LED indicators have been added while retaining a minimalist design.

Exploded view

Supported structures

Silicone socks gasket

Top mount

PCB

Hot-swap wired PCB, with a Caps lock LED indicator, support VIA/QMK, USB-C interface

The default firmware setting is that the lighting effect changes when you press the capslock key. If you turn off the RGB lighting, the LED will light up red when you press the capslock key.

The PCB has been upgraded to support a daughterboard, aiming to eliminate collisions between the USB port
and the case when using a gasket structure, providing better protection.

Additionally, customizations include a sapphire blue color and graffiti patterns.

Plate

Aluminum Black
Polycarbonate
FR4
Three plates are bundled in the kit, no need for additional selection.
