GEON Raw HE Magnetic Switches

Description

This switch is a Hall Effect switch, a mold designed by Geon that features high precision due to its low mold cavities.

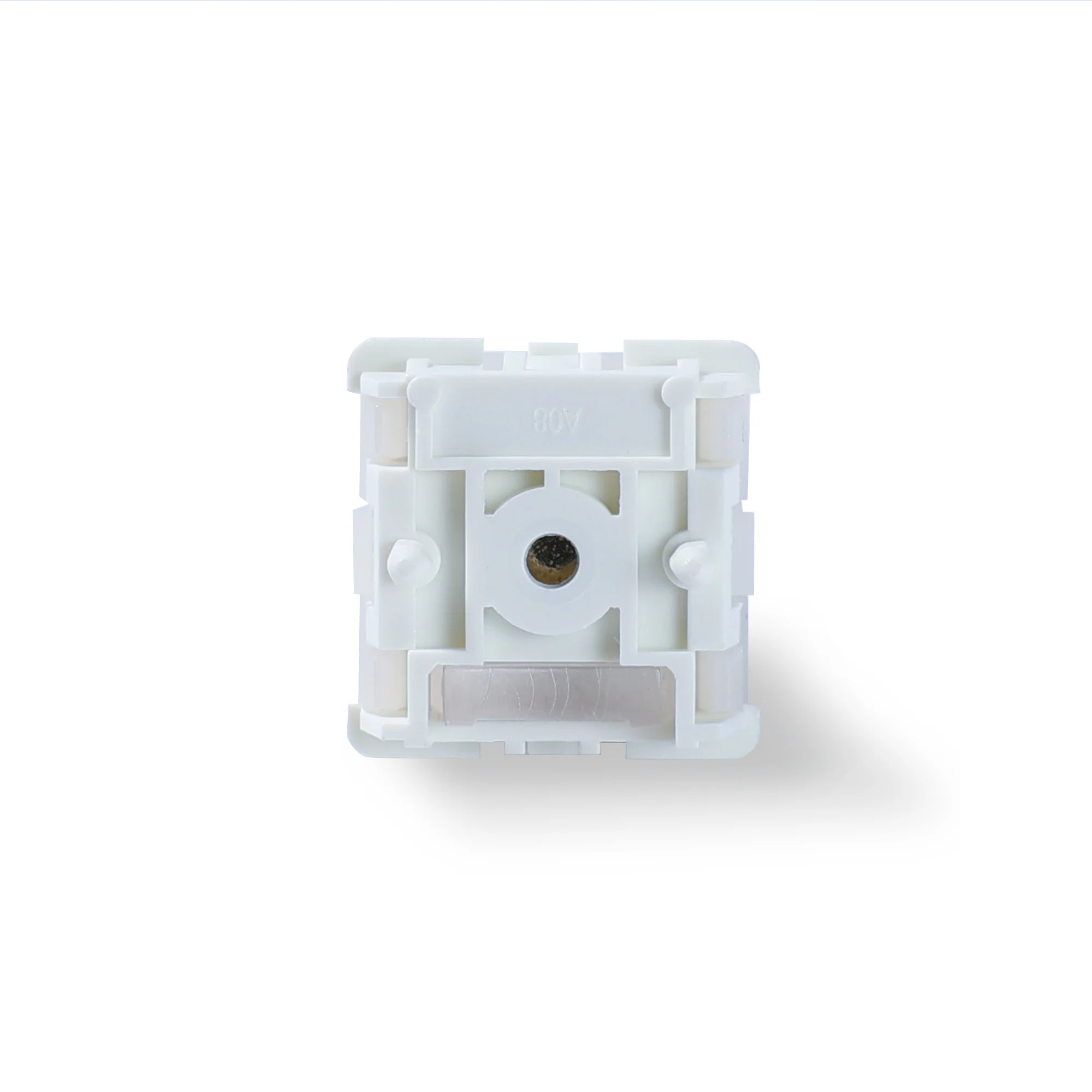

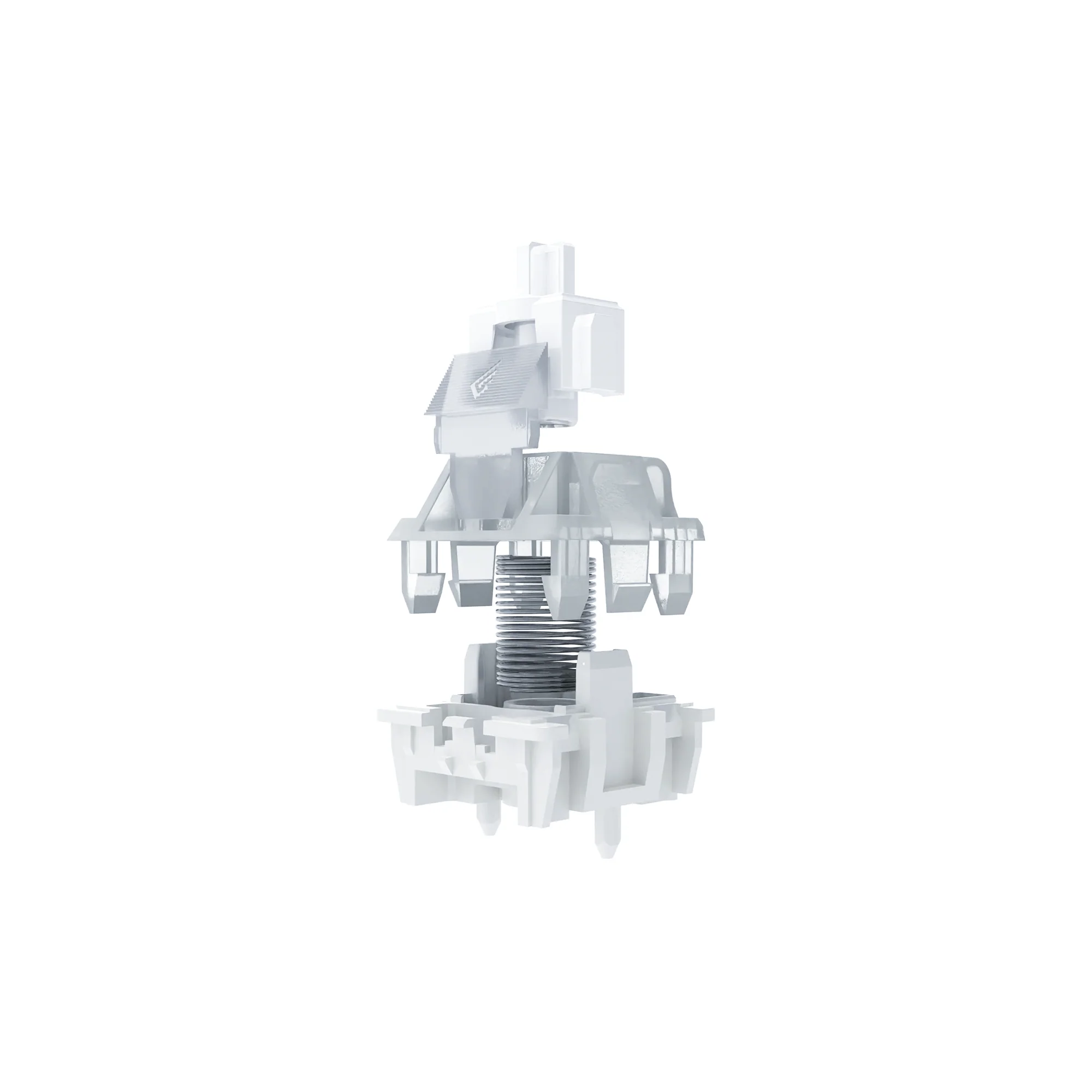

It has a full-travel of 3.4mm and a unique design with a through-hole bottom housing but with a pole touching the bottom.
It is an HE switch, which is similar to MX switches, so it can be used without any foreign feeling.

GEON RAW HE Linear Switch 2pins

• Switch Type – Linear, Lubed
• Initial Force – 27.0g / 36.0g / 45.0g
• Bottom-out Force – 40.0g / 50.0g / 60.0g
• Spring Length - 15.0mm
• Spring Type - Single-stage
• Pre Travel - 0.1 ~ 3.3mm (Analog)
• Full Travel - 3.4mm
• Top Housing Material - PC
• Bottom Housing Material - NYLON
• Stem Material - POM
• Mounting pins - 2pins
• 10pcs per pack

Magnetic Flux

• Initial - 160Gs
• Bottom-out - 720Gs
• Manufactured by GEONWORKS (OEM)
